Azure Spring Clean – 5 Tips to help you align to Enterprise Scale

Azure Spring clean. Easily one of my favourite Azure events of each year. I spend a lot of my year helping organisations clean up their Azure tenancies, so even though I’m writing this as Australia enters autumn, I’m super pumped to take you through my contribution for 2022. 5 Tips for how you can start your own Enterprise Scale journey, today.

For those who haven’t heard of Enterprise Scale Landing Zones (ES) before – It’s a bloody straight forward concept. Microsoft has developed several Azure best practices through the years, with these being reflected in the Cloud Adoption and Well Architected Frameworks. Enterprise Scale is guidance on how best to use these techniques in your environment.

This article will take you through five tips for customers who already have an Azure deployment, albeit not really aligned to the ES reference architectures. Microsoft also provides guidance on this process here. Let’s dive right in!

1. Understand the right reference architecture for you!

While Enterprise Scale (ES) is generic in implementation, every organisation is unique. As such, Microsoft has provided multiple options for organisations considering ES. Factors such as your size, growth plans or team structure will all influence your design choices. The first tip is pretty simple – Understand where you currently are, compared to the available architectures.

The four reference architectures that Microsoft provides for ES are:

Each Enterprise Scale pattern builds in capability

Note: The ES reference architectures that Microsoft provides here aren’t the only options; Cloud Adoption Framework clearly allows for “Partner Led” implementations which are often similar or a little more opinionated. Shameless Plug 😉 Arinco does this with our Azure Done Right offering.

2. Implement Management Groups & Azure Policy

Once you have selected a reference architecture, you then need to begin aligning. This can be challenging, as you’re more than likely already using Azure in anger. As such you want to make a change with minimal effort, but a high return on investment. Management Groups & Policy are without a doubt the clear winner here, even for single subscription deployments.

Starting simple with Management groups is pretty easy, and allows you to segment subscriptions as you grow and align. Importantly, Management Groups will help you to target Azure Policy deployments.

A simple structure here is all you need to get going, Production/Development as an easy line to draw, but it’s really up to you. In the below plan, I’ve segmented Prod and Dev, Platform and Landing Zone and finally individual products. Use your own judgement as required. A word from the wise; Don’t go too crazy, you can continue to segregate with subscriptions and resource groups.

Once you’ve set up Management Groups, it’s time to limit any future re-work and minimise effort for changes. Azure Policy is perfect for this, and you should create a Policy initiative which enforces your standards quickly. Some examples of where you might apply policy are;

If you haven’t spent much time with Azure Policy, the AWESOME-Azure-Policy repository maintained by Jesse Loudon has become an amazing source for anything you would want to know here!

3. Develop repeatable landing zones to grow in.

The third tip I have is probably the most important for existing deployments. Most commonly, non ES organisations operate in a few monolithic subscriptions, sometimes with a few resource groups to separate workloads. In the same way that microservices allow development teams to iterate on applications faster, Landing Zones allow you to develop capability on Azure faster.

A Landing Zone design is always slightly different by organisation, depending on what Azure architecture you selected and your business requirements.

Some things to keep in mind for your LZ design pattern are:

How will you network each LZ?
What security and monitoring settings are you deploying?
How will you segment resources in a LZ? Single Resource Group or Multiple?
What cost controls do you need to apply?
What applications will be deployed into each LZ?

There’s one common consideration on the above list that I’ve intentionally left off the above list;

How will you deploy a LZ?

The answer for this should be Always as Code. Using ARM Templates, Bicep, Terraform, Pulumi or any IaC allows you to quickly deploy a new LZ in a standardised pattern. Microsoft provides some excellent reference ARM templates here or Terraform here to demonstrate exactly this process!

4. Uplift security with Privileged Identity Management (PIM)

I love PIM. It’s without a doubt, my favourite service on Azure. If you haven’t heard of PIM before (how?), PIM focuses on applying approved administrative access within a time-boxed period. This works by automatically removing administrative access when not required, and requiring approval with strong authentication to re-activate the access. You can’t abuse an administrator account that has no admin privileges.

While the Enterprise Scale documentation doesn’t harp on the benefits of PIM, the IAM documentation makes it clear that you should be considering your design choices and that’s why using PIM is my fourth tip.

I won’t deep dive into the process of using PIM, the 8 steps you need here are already documented. What I will say is, spend the time to onboard each of your newly minted landing zones, and then begin to align your existing subscriptions. This process will give you a decent baseline of access which you can compare to when minimising ongoing production access.

5. Minimise cost by sharing platform services

Cost is always something to be conscious of when operating on any cloud provider and my final tip focuses on the hip pocket for that reason. Once you are factoring in things like reserved instances, right sizing or charge back models into your landing zones, this final tip is something which can really allow you to eek the most out of a limited cloud spend. That being said, this tip also requires a high degree of maturity within your operating model you must have a strong understanding of how your teams are operating and deploying to Azure.

Within Azure, there is a core set of services which provide a base capability you can deploy on top of. Key items which come to mind here are:

AKS Clusters
App Service Plans
API Management instances
Application Gateways

Once you have a decent landing zone model and Enterprise Scale alignment, now you can begin to share certain services. Take the below diagram as an example. Rather than build a single plan per app service or function, a dedicated plan helps to reduce the operating cost of all the resources. In the same way, a platform team might use the APIM DevOps Toolkit to provide a shared APIM instance.

Note that multiple different functions are using the same app service plan here.

Considering this capability model when you develop your alignment is an easy way which you can minimise work required to move resources to a new Enterprise Scale deployment. In my opinion, consolidating Kubernetes pods or APIM API’s is a lot easier than moving clusters or Azure resources between landing zones.

Note: While technically possible, try to avoid sharing IaaS virtual machines. This does save cost, but encourages using the most expensive Azure compute. You want to push engineering teams towards cheaper and easier PaaS capabilities where possible.

Final Thoughts

Hopefully you have found some value in this post and my tips for Enterprise Scale alignment. I’m really looking forward to seeing some of the community generated content. Until next time, stay cloudy!

Connecting Security Centre to Slack – The better way

Recently I’ve been working on some automated workflows for Azure Security Center and Azure Sentinel. Following best practice, after initial development, all our Logic Apps and connectors are deployed using infrastructure as code and Azure DevOps. This allows us to deploy multiple instances across customer tenants at scale. Unfortunately, there is a manual step required when deploying some Logic Apps, and you will encounter this on the first run of your workflow.

This issue occurs because connector resources often utilise OAuth flows to allow access to the target services. We’re using Slack as an example, but this includes services such as Office 365, Salesforce and GitHub. Selecting the information prompt under the deployed connector display name will quickly open a login screen, with the process authorising Azure to access your service.

Microsoft provides a few options to solve this problem;

Manually apply the settings on deployment. Azure will handle token refresh, so this is a one time task. While this would work, it isn’t great. At Arinco, we try to avoid manual tasks wherever possible
Pre-deploy connectors in advance. As multiple Logic Apps can utilise the same connector, operate them as a shared resource, perhaps owned by a platform engineering group.
Operate a worker service account, with a browser holding logged-in sessions. Use DevOps tasks to interact and authorise the connection. This is the worst of the three solutions and prone to breakage.

A better way to solve this problem would be to sidestep it entirely. Enter app webhooks for Slack. Webhooks act as a simple method to send data between applications. These can be unauthenticated and are often unique to an application instance.

To get started with this method, navigate to the applications page at api.slack.com, create a basic application, providing an application name and a “development” workspace.

Next, enable incoming webhooks and select your channel.

Just like that, you can send messages to a channel without an OAuth connector. Grab the CURL that is provided by Slack and try it out.

Once you have completed the basic setup in Slack, the hard part is all done! To use this capability in a Logic App, add the HTTP task and fill out the details like so:O

You will notice here that the request body we are using is a JSON formatted object. Follow the Slack block kit and you can develop some really nice looking messages. Slack even provides an excellent builder service.

Block kit enables you to develop rich UI within Slack.

Completing our integration in this manner has a couple of really nice benefits – Avoiding the manual work almost always pays off.

No Manual Integration, Hooray!
Our branding is better. Using the native connector does not allow you to easily change the user interface, with messages showing as sent by “Microsoft Azure Logic Apps”
Integration to the Slack ecosystem for further workflows. I haven’t touched on this here, but if you wanted to build automatic actions back to Logic Apps, using a Slack App provides a really elegant path to do this.

Until next time, stay cloudy!

Empowered Multi Cloud: Azure Arc and Kubernetes

At Arinco, we love Kubernetes, and in this post I’ll be covering the basics of configuring Azure Arc on Kubernetes. As a preview feature, this integration enables Azure administrators to connect to remote Kubernetes clusters, manage deployments, policy and monitoring data, without leaving the Azure Portal. If you’re experienced with Google Cloud, this functionality is remarkably similar to Google Anthos, with the main difference being that Anthos only focuses on Kubernetes, whereas Arc will quite happily manage Servers, SQL and Data platforms as well.

Before we begin, there is a couple of key facts that you need to be aware of while Arc for Kubernetes is in preview:

Currently only East US and West Europe deployments are supported.
Only x64 based clusters will work at this time and no manifests are published for you to recompile software on other architectures.
Testing of supported clusters is still in early days. Microsoft doesn’t recommend the Arc enabled Kubernetes solution for production workloads

Enabling Azure Arc

Assuming that you already have a cluster that will be supported, configuring a connected Kubernetes instance is a monumentally simple task Two steps to be exact.

1. Enable the preview azure cli extensions

1	`az extension add --name connectedk8s` `az extension add --name k8sconfiguration`

2. Run the CLI commands to enable an ARC enabled cluster

1	`az connectedk8s connect --name GKE-KUBERNETES-LAB --resource-group KUBERNETESARC-RG01`

Under the hood, Azure CLI completes the following when we execute the above command:

Creates an ARM Resource for your cluster, generating the relevant connections and secrets.
Connects to your currently cluster context (see kubeconfig) and creates a deployment using Helm. ConfigMaps are provided with details for connecting to Azure, with resources being published into an azure-arc namespace
Monitors this deployment to completion. For failing clusters, expect to be notified of failure after approximately 5-10 minutes.

If you would like to watch the deployment, it generally takes around 30 seconds for an Arc namespace to show up and from there you can watch as Azure Arc related pods are scheduled.

So what can we do?

Once a cluster is on-boarded to Arc, there is actually quite a bit you can do in preview, including monitor. The most important in my opinion is simplified method to control clusters via the GitOps model. If you were paying attention during deployment, you will have noticed that Flux is used to deliver this functionality. Expect further updates here, as Microsoft has publicly committed recently to further developing a standardised GitOps model.

Using this configurations model is quite simple, and to be perfectly honest, you don’t even need to understand exactly how Flux works. First, commit your Kubernetes manifests to a public repository, don’t stress too much about order or structure. Flux is basically magic here and can figure everything out. Next add a configuration to your cluster and go grab a coffee.

For my cluster, I’ve used the Microsoft demo repository. Simply fork this and you can watch the pods create as you update your manifests.

Closing Thoughts

There is a lot of reasons to run your own cluster, or a cluster in another cloud. Generally speaking, if you’re currently considering Azure Arc you will be pretty comfortable with the Kubernetes ecosystem as a whole.

Arc enabled clusters will just be another tool you could add, and you should use same consideration that you apply for every other service you consider utilising. In my opinion the biggest benefit of the service is simplified and centralized management capability across multiple clusters. This allows me to manage my own AKS clusters and AWS/GCP clusters with centralized policy enforcement, RBAC and monitoring. I would probably look to implement Arc if I was running a datacenter cluster, and definitely if I was looking to migrate to AKS in the future. If you are looking to get test out Arc for yourself, I would definitely recommend the Azure Arc Jumpstart.
Until next time, stay cloudy!

Originally posted at arinco.com.au

Empowered Multi Cloud: Onboarding IaaS to Azure Arc

More often than not, organisations move to the cloud on a one way path. This can be a challenging process with a large amount of learning, growth and understanding required. But why does it all have to be in one direction? What about modernising by bringing the cloud to you? One of the ways that organisations can begin this process when moving to Azure is by leveraging Azure Arc, a provider agnostic toolchain that supports integration of IaaS, Data services and Kubernetes to the Azure Control Plane.

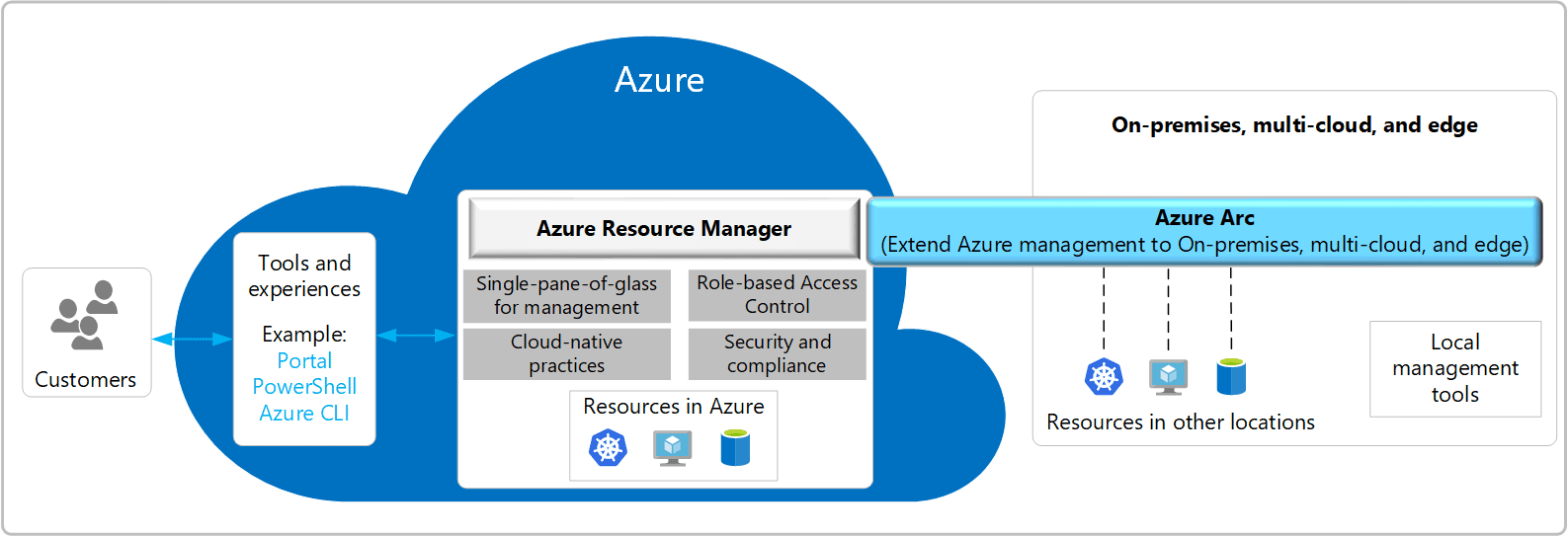

Azure Arc management control plane diagram — Azure Arc Architecture

Using Arc, technology teams are enabled to use multiple powerful Azure tools in an on-premise environment. This includes;

Azure Policy and guest extensions
Azure Monitor
Azure VM Extensions
Azure Security Centre
Azure Automation including Update Management, Change Tracking and Inventory.

Most importantly, the Arc pricing model is my favourite type of pricing model: FREE! Arc focuses on connecting to Azure and providing visibility, with some extra cost required as you consume secondary services like Azure Security Centre.

Onboarding servers to Azure Arc

Onboarding servers to Arc is a relatively straight forward task and is supported in a few different ways. If you’re working on a small number of servers, onboarding using the Azure portal is a manageable task. However, if you’re running at scale, you probably want to look at an automated deployment using tools like the VMWare CLI script or Ansible.

For the onboarding in this blog, I’m going to use the Azure Portal for my servers. First up, ensure you have registered the HybridCompute provider using Azure CLI.

az provider register --namespace 'Microsoft.HybridCompute'

Next, search for Arc in the portal and select add a server. The process here is very much “follow the bouncing ball” and you shouldn’t have too many questions. Data residency is already supported for Australia East, so no concerns there for regulated entities!

Providing basic residency and storage information

When it comes to tagging of Arc servers, Microsoft suggests a few location based tags, with options to include business based also. In a lab scenario like this demo, location is pretty useless, however in real-world scenarios this can be quite useful for identifying what resources exist in each site. Post completion of tagging, you will be provided with a script for the target server. You can use generated script for multiple servers, however, you will need to update any custom tags you may add.

The script execution itself is generally a pretty quick process, with the end result being a provisioned resource in Azure and the Connected Machine Agent on your device.

So what can we do?

Now that you’ve completed onboarding you’re probably wondering what next? I’m a big fan of the Azure Monitoring platform (death to SCOM), so for me this will always be a Log Analytics onboarding task, closely followed by Security Centre. One of the key benefits with Azure Arc is the simplicity of everything, so you should find onboarding any Arc supported solution to be a straight forward process. For Log Analytics navigate to insights, select your analytics workspace, enable and you’re done!

What logs you collect is entirely on your logging collection strategy with Microsoft providing further detail on that process here. In my opinion, the performance data being located in a single location is worth it’s weight in gold.

If you have already connected Security Centre to your workspace, onboarding to Log Analytics often also connects your device to Security centre, enabling detailed monitoring and vulnerability management.

Domain controller automatically enabled for Security Centre

Right for you?

While the cloud enables organisations to move quickly, sometimes moving slowly is just what the doctor ordered. Azure Arc is definitely a great platform for organisations looking to begin using Azure services and most importantly, bring Azure into their data centre. If you’re wanting to learn more about Arc, Microsoft has published an excellent set of quick-starts here and the documentation is also pretty comprehensive. Stay tuned for our next post, where we explore using Azure Arc with Kubernetes. Until next time, stay cloudy!

Managing Container Lifecycle with Azure Container Registry Tasks

Recently I’ve been spending a bit of time working with a few customers, onboarding them to Azure Kubernetes Service. This is generally a pretty straight forward process; Build Cluster, Configure ACR, Setup CI/CD.

During the CI/CD buildout with one customer, we noticed pretty quickly that our cheap and easy basic ACR was filling up rather quickly. Mostly with development containers which were used once or twice and then never again.

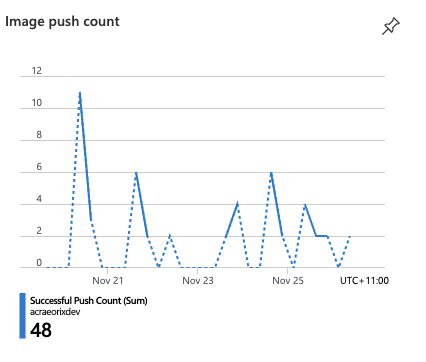

In my opinion the build rate of this repository wasn’t too bad. We pushed to development and testing 48 times over a one week period, with these incremental changes flowing through to production pretty reliably on our weekly schedule.

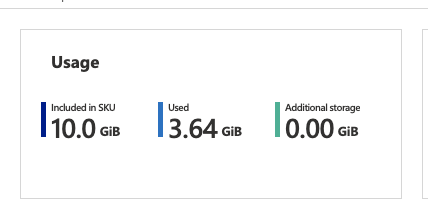

That being said, the growth trajectory put our development ACR filling up in about 3-4 months. Sure we could simply upgrade the ACR to a standard or premium tier, but at what cost? A 4x price increase between basic and standard SKU’s, and even steeper 9x to premium. Thankfully, we can solve for this in few ways.

Manage our container size – Start from scratch or a container specific OS like alpine.
Build containers less frequently – We have almost a 50:1 development to production ratio, so there is definitely a bit of wiggle room there.
Manage the registry contents, deleting old or untagged images.

Combining these options will provides our team with a long term and scalable solution. But how can we implement item number 3?

ACR Purge & Automatic Cleanup

As a preview feature, Azure Container Registry now supports filter based cleanup of images and containers. This can be completed as an ad-hoc process or as a scheduled task. To get things right, I’ll first build an ACR command that deletes tagged images.

# Environment variable for container command line
PURGE_CMD="acr purge \
  --filter 'container/myimage:dev-.*' \
  --ago 3d --dry-run"

az acr run \
  --cmd "$PURGE_CMD" \
  --registry mycontainerregistry \
  /dev/null

I’ve set an agreed upon container age for my containers and I’m quite selective of which containers I purge. The above dry-run only selects the development “myimage” container and gives me a nice example of what my task would actually do.

Including multiple filters in purge commands is supported. So, feel free to build expansive query sets. Once you are happy with the dry run output, it’s time to setup an automatic job. ACR uses standard cronjob syntax for scheduling, so this should be a pretty familiar experience for linux administrators.

PURGE_CMD="acr purge \
  --filter 'container/my-api:dev-.*' \
  --filter 'container/my-db:dev-.*' \
  --ago 3d"

az acr task create --name old-container-purge \
  --cmd "$PURGE_CMD" \
  --schedule "0 2 * * *" \
  --registry mycontainerregistry \
  --timeout 3600 \
  --context /dev/null

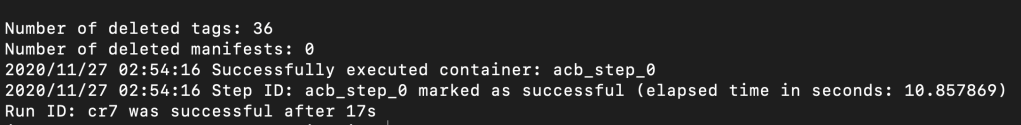

And just like that, we have a task which will clean up our registry daily at 2am.

As an ARM template please?

If you’re operating or deploying multiple container registries for various teams, you might want to standardise this type of task across the board. As such, integrating this into your ARM templates would be mighty useful.

Microsoft provides the “Microsoft.ContainerRegistry/registries/tasks” resource type for deploying these actions at scale. There is, however, a slightly irritating quirk. Your ACR command must be base64 encoded YAML following the tasks specification neatly documented here. I’m not sure about our readers, but generally combining Base64, YAML and JSON leaves a nasty taste in my mouth!

{
    "$schema": "https://schema.management.azure.com/schemas/2019-04-01/deploymentTemplate.json#",
    "contentVersion": "1.0.0.0",
    "parameters": {
        "containerRegistryName": {
            "type": "String",
            "metadata": {
                "description": "Name of the ACR to deploy task resource."
            }
        },
        "containerRegistryTaskName" : {
            "defaultValue": "old-container-purge",
            "type": "String",
            "metadata": {
                "description": "Name for the ACR Task resource."
            }
        },
        "taskContent" : {
            "defaultValue": "dmVyc2lvbjogdjEuMS4wCnN0ZXBzOiAKICAtIGNtZDogYWNyIHB1cmdlIC0tZmlsdGVyICdjb250YWluZXIvbXktYXBpOmRldi0uKicgLS1maWx0ZXIgJ2NvbnRhaW5lci9teS1kYjpkZXYtLionIC0tYWdvIDNkIgogICAgZGlzYWJsZVdvcmtpbmdEaXJlY3RvcnlPdmVycmlkZTogdHJ1ZQogICAgdGltZW91dDogMzYwMA==",
            "type": "String",
            "metadata": {
                "description": "Base64 Encoded YAML for the ACR Task."
            }
        },
        "taskSchedule"  : {
            "defaultValue": "0 2 * * *",
            "type": "String",
            "metadata": {
                "description": "CRON Schedule for the ACR Task resource."
            }
        },
        "location": {
            "type": "string",
            "defaultValue": "[resourceGroup().location]",
            "metadata": {
                "description": "Location to deploy the ACR Task resource."
            }
        }
    },
    "functions": [],
    "variables": {},
    "resources": [
        {
            "type": "Microsoft.ContainerRegistry/registries/tasks",
            "name": "[concat(parameters('containerregistryName'), '/', parameters('containerRegistryTaskName'))]",
            "apiVersion": "2019-06-01-preview",
            "location": "[parameters('location')]",
            "properties": {
                "platform": {
                    "os": "linux",
                    "architecture": "amd64"
                },
                "agentConfiguration": {
                    "cpu": 2
                },
                "timeout": 3600,
                "step": {
                    "type": "EncodedTask",
                    "encodedTaskContent": "[parameters('taskContent')]",
                    "values": []
                },
                "trigger": {
                    "timerTriggers": [
                        {
                            "schedule": "[parameters('taskSchedule')]",
                            "status": "Enabled",
                            "name": "t1"
                        }
                    ],
                    "baseImageTrigger": {
                        "baseImageTriggerType": "Runtime",
                        "status": "Enabled",
                        "name": "defaultBaseimageTriggerName"
                    }
                }
            }
        }
    ],
    "outputs": {}
}

The above encoded base64 translates to the following YAML. Note that it includes the required command and some details about the execution timeout limit. For actions that purge a large amount of containers, Microsoft advises you might need to increase this limit beyond the default 3600 seconds (1 Hour).

version: v1.1.0
steps:
  - cmd: acr purge --filter 'container/my-api:dev-.*' --filter 'container/my-db:dev-.*' --ago 3d"
    disableWorkingDirectoryOverride: true
    timeout: 3600

Summary

Hopefully, you have found this blog post informative and useful. There are a number of scenarios for this feature-set; deleting untagged images, cleaning up badly named containers or even building new containers from scratch. I’m definitely excited to see this feature move to general availability. As always, please feel free to reach out if you would like to know more. Until next time!

Attempting to use Azure ARC on an RPi Kubernetes cluster

Recently I’ve been spending a fair bit of effort working on Azure Kubernetes Service. I don’t think it really needs repeating, but AKS is an absolutely phenomenal product. You get all the excellence of the K8s platform, with a huge percentage of the overhead managed by Microsoft. I’m obviously biased as I spend most of my time on Azure, but I definitely find it easier than GKE & EKS. The main problem I have with AKS is cost. Not for production workloads or business operations, but for lab scenarios where I just want to test my manifests, helm charts or whatever. There’s definitely a lot of options for spinning up clusters on demand for lab scenarios or even reducing cost of an always present cluster; Terraform, Kind or even just right sizing/power management. I could definitely find a solution that fits within my current Azure budget. Never being one to take the easy option, I’ve taken a slightly different approach for my lab needs. A two node (soon to be four) Raspberry Pi Kubernetes cluster.

Besides just being cool, It’s great to have a permanent cluster available for personal projects, with the added bonus that my Azure credit is saved for more deserving work!

That’s all good and well I hear you saying, but I needed this cluster to lab AKS scenarios right? Microsoft has been slowly working to integrate “non AKS” Kubernetes into Azure in the form of ARC enabled clusters – Think of this almost as an Azure compete to Google Anthos, but with so much more. The reason? Arc doesn’t just cover the K8s platform and it brings a whole host of Azure capability right onto the cluster.

The setup

Configuring a connected ARC cluster is a monumentally simple task for clusters which meet muster. Two steps to be exact.

1. Enable the preview azure cli extensions

az extension add --name connectedk8s
az extension add --name k8sconfiguration

2. Run the CLI commands to enable an ARC enabled cluster

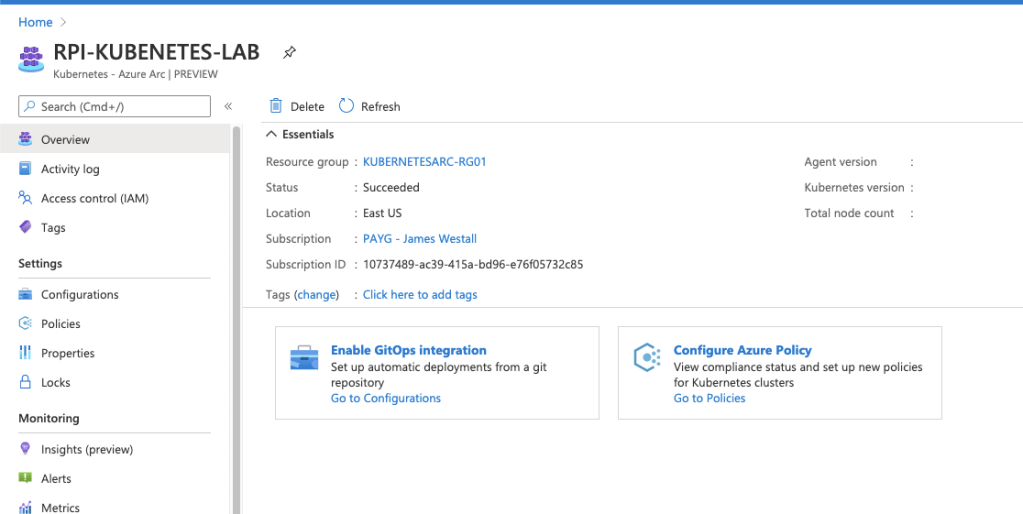

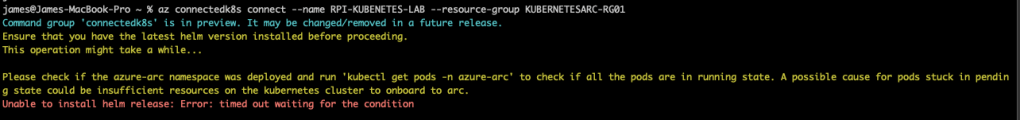

az connectedk8s connect --name RPI-KUBENETES-LAB --resource-group KUBERNETESARC-RG01

In the case of my Raspberry Pi cluster – arm64 architecture really doesn’t cut it. Shortly after you run your commands you will receive a timeout and discover pods stuck in a pending state.

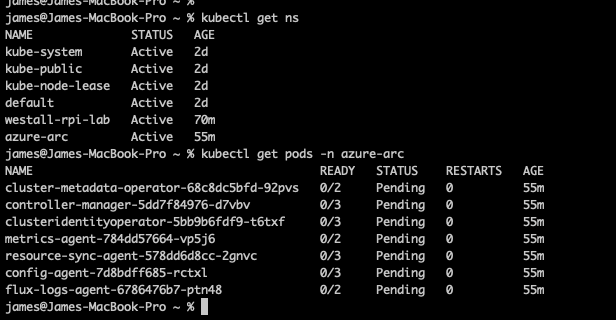

Digging into the deployments, it quickly becomes obvious that an amd64 architecture is really needed to make this work. Pods are scheduled across the board with a node selector. Removing this causes a whole host of issues related to what looks like both container compilation & software architecture. For now it looks like I might be stuck with a tantalising object in Azure & a local cluster for testing. I’ve become a victim of my own difficult tendencies!

Right for you?

There is a lot of reasons to run your own cluster – Generally speaking, if you’re doing so you will be pretty comfortable with the Kubernetes ecosystem as a whole. This will just be “another tool” you could add, and you should apply the same consideration for every other service you consider using. In my opinion the biggest benefit of the service is the simplified/centralised management plane across multiple clusters. This allows me to manage my own (albeit short lived) AKS clusters and my desk cluster with centralised policy enforcement, RBAC & monitoring. I would probably look to implement if I was running my datacenter cluster, and definitely if I was looking to migrate to AKS in the future. If you are considering, keep in mind a few caveats;

The Arc Service is still in preview – expect a few bumps as the service grows
Currently only available in EastUS & WestEurope – You might be stuck for now if operating under data residency requirements.

At this point in time, I’ll content myself with local cluster. Perhaps I’ll publish a future blog post if I manage to work through all these architecture issues. Until next time, stay cloudy!

Security Testing your ARM Templates

In medicine there is a saying “an ounce of prevention is worth a pound of cure”” – What this concept boils down to for health practitioners is that engaging early is often the cheapest & simplest method for preventing expensive & risky health scenarios. It’s a lot cheaper & easier to teach school children about healthy foods & exercise than to complete a heart bypass operation once someone has neglected their health. Importantly, this concept extends to multiple fields, with CyberSecurity being no different.
Since the beginning of cloud, organisations everywhere have seen explosive growth in infrastructure provisioned into Azure, AWS and GCP. This explosive growth all too often corresponds with increases to security workload without required budgetary & operational capability increases. In the quest to increase security efficiency and reduce workload, this is a critical challenge. Once a security issue hits your CSPM, Azure Security Centre or AWS Trusted Inspector dashboard, it’s often too late; The security team now has to work to complete within a production environment. Infrastructure as Code security testing is a simple addition to any pipeline which will reduce the security group workload!

Preventing this type of incident is exactly why we should complete BASIC security testing..

We’ve already covered quality testing within a previous post, so today we are going to focus on the security specific options.

The first integrated option for ARM templates is easily the Azure Secure DevOps kit (AzSK for short). The AzSK has been around for while and is published by the Microsoft Core Services and Engineering division; It provides governance, security IntelliSense & ARM template validation capability, for free. Integrating to your DevOps Pipelines is relatively simple, with pre-built connectors available for Azure DevOps and a PowerShell module for local users to test with.

Another great option for security testing is Checkov from bridgecrew. I really like this tool because it provides over 400 tests spanning AWS, GCP, Azure and Kubernetes. The biggest drawback I have found is the export configuration – Checkov exports JUnit test results, however if nothing is applicable for a specified template, no tests will be displayed. This isn’t a huge deal, but can be annoying if you prefer to see consistent tests across all infrastructure…

The following snippet is all you really need if you want to import Checkov into an Azure DevOps pipeline & start publishing results!

  - task: UsePythonVersion@0
    inputs:
      versionSpec: '3.7'
      addToPath: true
    displayName: 'Install Python 3.7'

  - script: python -m pip install --upgrade pip setuptools wheel
    displayName: 'Install pip3'

  - script: pip3 install checkov
    displayName: 'Install Checkov using pip3'

  - script: checkov -d ./${{parameters.iacFolder}} -o junitxml -s >> checkov_sectests.xml
    displayName: 'Security test with Checkov'

  - task: PublishTestResults@2
    displayName: Publish Security Test Results (Checkov)
    condition: always()
    inputs:
      testResultsFormat: JUnit
      testResultsFiles: '**sectests.xml'

When to break the build & how to engage..

Depending on your background, breaking the build can really seem like a negative thing. After all, you want to prevent these issues getting into production, but you don’t want to be a jerk. My position on this is that security practitioners should NOT break the build for cloud infrastructure testing within dev, test and staging. (I can already hear the people who work in regulated environments squirming at this – but trust me, you CAN do this). While integration of tools like this is definitely an easy way to prevent vulnerabilities or misconfigurations from reaching these environments, the goal is to raise awareness & not increase negative perceptions.

Security should never be the first team to say no in pre-prod environments.

Use the results of any tools added into a pipeline as a chance to really evangelize security within your business. Yelling something like “Exposing your AKS Cluster publicly is not allowed” is all well and good, but explaining why public clusters increase organisational risk is a much better strategy. The challenge when security becomes a blocker is that security will no longer be engaged. Who wants to deal with the guy who always says no? An engaged security team has so much more opportunity to educate, influence and effect positive security change.

Importantly, engaging well within dev/test/sit and not being that jerk who says no, grants you a magical superpower – When you do say no, people listen. When warranted, go ahead and break the build – That CVSS 10.0 vulnerability definitely isn’t making it into prod. Even better, that vuln doesn’t make it to prod WITH support of your development & operational groups!

Hopefully this post has given you some food for thought on security testing, until next time, stay cloudy!

Note: Forest Brazael really has become my favourite tech related comic dude. Check his stuff out here & here.

Azure AD Administrative Units – Preview!

Recently I was approached by a customer regarding a challenge they wanted to solve. How to delegate administrative control of a few users within Azure Active Directory to some lower level administrators? This is a common problem experienced by teams as they move to cloud based directories – a flat structure doesn’t really allow for delegation on business rules. Enter Azure AD Administrative Units; A preview feature enabling delegation & organisation of your cloud directory. For Active Directory Administrators, this will be a quite familiar experience to Organisational Units & delegating permissions. Okta also has a similar functionality, albeit implemented differently.

Active Directory Admins will immediately feel comfortable with Azure AD Admin Units

So when do you want to use this? Basically any time you find yourself wanting a hierarchical & structured directory. While still in preview, this feature will likely grow over time to support advanced RBAC controls and in the interim, this is quite an elegant way to delegate out directory access.

Setting up an Administrative Unit

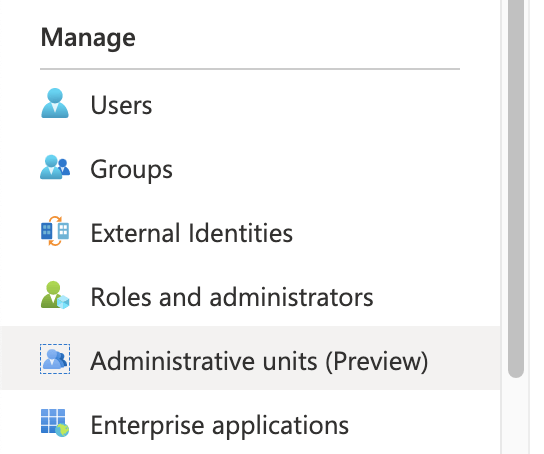

Setting up an Administrative Unit is quite a simple task within the Azure Portal; Navigate to your Azure AD Portal & locate the option under Manage.

Select Add, and provide your required names & roles. Admin assignment is focused on user & group operations, as device administration has similar capability under custom intune roles and application administrators can be managed via specified roles.

You can also create administrative units using the Azure AD PowerShell Module; A simple one line command will do the trick!

New-AzureADAdministrativeUnit -Description "Admin Unit Blog Post" -DisplayName "Blog-Admin-Users"

User Management

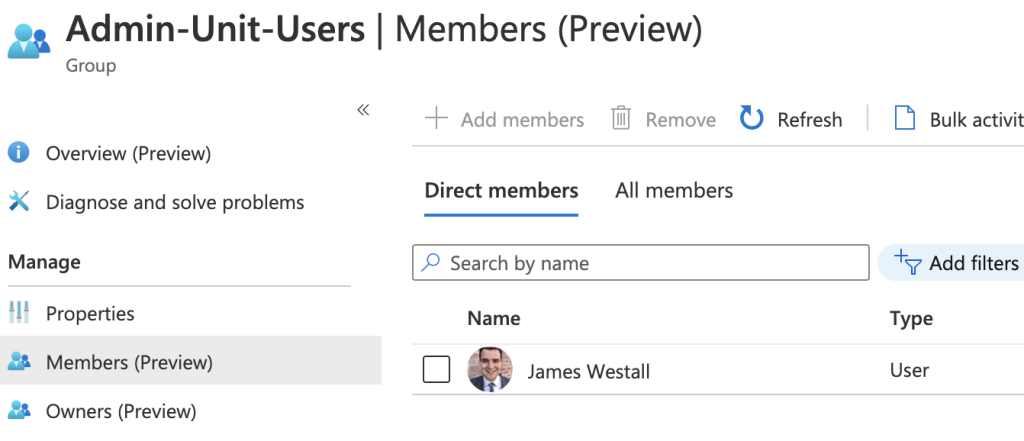

Once you have created an administrative unit, you can begin to add users & groups. As this point in time, administrative units only support assignment manually, either one by one or via csv upload. The process itself is quite simple; Select Add user and click through everyone you would like to be included.

While this works quite easily for small setups, at scale you would likely find this to be a bit tedious. One way to work around this is to combine Dynamic Groups with your chosen PowerShell execution environment. For me, This is an Automation Account. First, configure a dynamic group which automatically drags in your desired users.

Next, execute the following PowerShell snippet. Note that I am using the Azure AD Preview module, as support is yet to move to the production module.

https://gist.github.com/jameswestall/832549f95ac7caac80a1f6c74fef1931.js

This can be configured on a schedule as frequently as you need this information to be accurate!

You will note here that one user gets neatly removed from the Administrative Unit – This is because the above PowerShell treats the dynamic group as an authoritative source for Admin Unit Membership. When dealing with assignment through user details (Lifecycle Management) I find that selecting authoritative sources reduces both work effort and confusion. Who wants to do manual management anyway? Should you really want to allow manual addition, simply remove the line marked to remove members!

Hopefully you find this post a useful insight to the usage of Administrative Units within your organisation. There a lot of useful scenarios where this can be leveraged and this feature should most definitely help you minimise administrative privilege in your environment (hooray!). As always, feel free to reach out with any questions or comments! Stay tuned for my next post, where I will be diving into Azure AD Access Packages 🙂

Happy Wife Happy Life – Building my wedding invites in Python on Azure!

One of the many things I love about the cloud is the ease at which it allows me to develop and deploy solutions. I recently got married – An event which is both immensely fulfilling and incredibly stressful to organise. Being a digital first millennial couple, my partner and I wanted to deliver our invites electronically. Being the stubborn technologist that I am, I used the wedding as an excuse to practice my cloud & python skills! This blog neatly summarises what I implemented, and the fun I dealt with along the way.

The Plan – How do I want to do this?

For me, the main goal moving was to deliver a simple, easy to use solution which enabled me to keep sharp on some cloud technology, time and complexity was not a deciding factor. Being a consultant, I generally touch a multitude of different services/providers and I need to keep challenged to stay up to date on a broad range of things.

For my partner, it was important that I could quickly deliver a website, at low cost, with personalised access codes and email capability – A fully fledged mobile app would have been the nirvana, but I’m not that great at writing code (yet) – Sorry hun, maybe at a future vow renewal?

When originally planning, I really wanted to design a full end to end solution using functions & all the cool serverless features. I quickly realised that this would also take me too long to keep my partner happy, so I opted for a simpler path – an ACI deployment, with Azure Traffic manager allowing a nice custom domain (Feature request please MS). I designed Azure Storage as a simple table backend, and utilised SendGrid as the email service. Azure DNS allowed me to host all the relevant records, and I built my containers for ACR Using Azure DevOps.

Slapping together wedding invites on Azure in an afternoon? Why not?

Implementing – How to use this flask thing?

Ask anyone who knows me and they will tell you I will give just about anything a crack. I generally use python when required for scripting/automation and I really don’t use it for much beyond that. When investigating how to build a modern web app, I really liked the idea of learning some more python – It’s such a versatile language and really deserves more of my attention. I also looked at using React, WordPress & Django. However I really hate writing javascript, this blog is WordPress so no learning there, and Django was have been my next choice after flask.

Implementing into flask was actually extremely simple for basic operations. I’m certain I could have implemented my routing in a neater manner – perhaps a task for future refactoring/pull requests! I really liked the ability to test flask apps by simply running python3 app.py. A lot quicker than a full docker build process, and super useful in development mode!

The template based model that flask enables developers to utilise is extremely quick. Bootstrap concepts haven’t really changed since it was released in 2011, and modifying a single template to cater for different users was really simple.

For user access, I used a simple model where a code was utilised to access the details page, and this code was then passed through all the web requests from then on. Any code submitted that did not exist in azure storage simply fired a small error!

import flask
from string import Template
from flask import request
from flask import render_template
from flask import redirect
import os
from datetime import datetime
from azure.cosmosdb.table.tableservice import TableService
from azure.cosmosdb.table.models import Entity

app = flask.Flask(__name__)
app.config['StorageName'] = os.environ.get('StorageName')
app.config['StorageKey'] = os.environ.get('StorageKey')

#StorageName = os.environ.get('StorageName')
#StorageKey = os.environ.get('StorageKey')
@app.route('/', methods=['GET'])
def home():
    return render_template('index.html')  # render a template

@app.route('/badCode')
def badCode():
    return render_template('index.html', formError = "Incorrect Code, Please try again.")

@app.route('/user/<variable>', methods=['GET'])
def userpage(variable):
    table_service = TableService(account_name=app.config['StorageName'], account_key=app.config['StorageKey'])
    name= variable.lower()
    try:
        details = table_service.get_entity('weddingtable', 'Invites', name)
        print(details)
        return render_template("user.html",People1=details.Names, People2=details.Names2, hide=details.Hide, userCode = variable, commentmessage=details.Message)
    except:
        return redirect('/badCode')


@app.route('/locations')
def locations():
    return render_template('locations.html',HomeLink="./")

@app.route('/locations/<UserCode>')
def authedUser(UserCode):
    link = "../user/" + UserCode
    return render_template('locations.html',HomeLink=link)

@app.route('/code', methods=['POST'])
def handle_userCode():
    codepath = '/user/' + request.form['personalCode']
    return redirect(codepath)

@app.route('/Thankyou/<UserCode>')
def thank(UserCode):

    codepath = '/user/' + UserCode
    return render_template('thankyou.html', HomeLink=codepath)

@app.route('/RSVP', methods=['POST'])
def handle_RSVP():
    print('User Code Is: {}'.format(request.form['userCode']))
    table_service = TableService(account_name=app.config['StorageName'], account_key=app.config['StorageKey'])
    now = datetime.now()
    time = now.strftime("%m-%d-%Y %H-%M-%S")
    rsvp = {'PartitionKey': 'rsvp', 'RowKey': time ,'GroupID': request.form['userCode'],
        'comments': request.form['comment'], 'Status': request.form['action']}
    print(rsvp)
    table_service.insert_entity('weddingrsvptable', rsvp)
    redirectlink = '/Thankyou/{}'.format(request.form['userCode'])
    return redirect(redirectlink)

app.run(host='0.0.0.0', port=80, debug=True)

The end result of my bootstrap & flask configuration was really quite simple – my Fiance was quite impressed!

Deployment – Azure DevOps, ACI, ARM & Traffic Manager

Deploying to Azure Container Registry and Instances is almost 100% idiotproof within Azure DevOps. Within about five minutes in the GUI, you can get a working pipeline with a docker build & push to your Azure Container Registry, and then refresh your Azure Container Instances from there. Microsoft doesn’t really recommend using ACI for anything beyond a simple workloads, and I found support for nearly everything to be pretty limited.
Because I didn’t want a fully fledged AKS cluster/host or an App Service Plan running containers, I used traffic manager to work around the custom domain limitations of ACI. As a whole, the traffic manager profile would cost me next to nothing, and I knew that I wouldn’t be receiving many queries to the services.

At some point I looked at deploying my storage account using ARM templates, however I found that table storage is currently not supported for deployment using this method. You will notice that my azure pipeline uses the Azure Shell commands to do this. I didn’t get around to automating the integration from storage to container instances – Mostly because I had asked my partner to fill out another storage account table manually and didn’t want to move anything!

trigger:
- master

pool:
  vmImage: 'ubuntu-latest'

variables:
  imageName: 'WeddingContainer'

steps:
- task: Docker@2
  inputs:
    containerRegistry: 'ACR Connection'
    repository: 'WeddingWebsite'
    command: 'buildAndPush'
    Dockerfile: 'Dockerfile'
    tags: |
      v1
- task: Docker@2
  inputs:
    containerRegistry: 'ACR Connection'
    command: 'login'

- task: AzureCLI@2
  inputs:
    azureSubscription: 'PAYG - James Auchterlonie(2861f6bf-8886-47a9-bc4b-de1a11df0e5f)'
    scriptType: 'bash'
    scriptLocation: 'inlinescript'
    inlineScript: 'az storage account create --name weddingazdevops --resource-group CONTAINER-RG01 --location australiaeast --sku Standard_LRS --kind StorageV2'

- task: AzureCLI@2
  inputs:
    azureSubscription: 'PAYG - James Auchterlonie(2861f6bf-8886-47a9-bc4b-de1a11df0e5f)'
    scriptType: 'bash'
    scriptLocation: 'inlineScript'
    inlineScript: 'az storage table create -n weddingtable --account-name weddingazdevops'

- task: AzureCLI@2
  inputs:
    azureSubscription: 'PAYG - James Auchterlonie(2861f6bf-8886-47a9-bc4b-de1a11df0e5f)'
    scriptType: 'bash'
    scriptLocation: 'inlineScript'
    inlineScript: 'az container create --resource-group CONTAINER-RG01 --name weddingwebsite --image youracrnamehere.azurecr.io/weddingwebsite:v1 --dns-name-label weddingwebsite --ports 80 --location australiaeast --registry-username youracrname --registry-password $(ACRSECRET) --environment-variables StorageName=$(StorageName) StorageKey=$(StorageKey)'

- task: AzureCLI@2
  inputs:
    azureSubscription: 'PAYG - James Auchterlonie(2861f6bf-8886-47a9-bc4b-de1a11df0e5f)'
    scriptType: 'bash'
    scriptLocation: 'inlineScript'
    inlineScript: 'az container restart --name weddingwebsite --resource-group CONTAINER-RG01'

For my outbound email I opted to utilise SendGrid. You can actually sign up for this service within the Azure Portal as a “third party service”. It adds an object to your resource group, however administration is still within the SendGrid portal.

Issues?

As an overall service, I found my deployment to be relatively stable. I ran two issues through my deployment, both of which were not too simple to resolve.

1. Azure Credit & Azure DNS – About halfway through the live period after sending my invites, I noticed that my service was down. This was actually due to DNS not servicing requests due to insufficient credit. A SQL server I was also labbing had killed my funds! This was actually super frustrating to fix as I had another unrelated issue with the Owner RBAC on my subscription – My subscription was locked for IAM editing due to insufficient funds, and I couldn’t add another payment method because I was not owner – Do you see the loop too?
I would love to see some form of payment model that allows for upfront payment of DNS queries in blocks or chunks – Hopefully this would prevent full scale DNS based outages when using Azure DNS and Credit based payment in the future.

2. SPAM – I also had a couple of reports of emails sent from sendgrid being marked as spam. This was really frustrating, however not common enough for me to dig into as a whole, especially considering I was operating in the free tier. I added a DKIM & DMARC Record for my second run of emails and didn’t receive as much feedback which was good.

The Cost – Was it worth it?

All in All the solution I implemented was pretty expensive when compared to other online products and even other Azure services. I could have definitely saved money by using App Services, Azure Functions or even static Azure Storage websites. Thankfully, the goal for me wasn’t to be cheap. It was practice. Even better though, my employer provides me with an Azure Credit for dev/test, so I actually spent nothing! As such, I really think this exercise was 100% worth it.

Summary – Totally learnt some things here!

I really hoped you enjoyed this small writeup on my experience deploying small websites in Azure. I spent a grand total of about three hours over two weeks tinkering on this project, and you can see a mostly sanitised repo here. I definitely appreciated the opportunity to get a little bit better at python, and will likely look to revisit the topic again in the future!

(Heres a snippet of the big day – I’m most definitely punching above my average! 😂)

SCOM of the Earth: Replacing Operations Manager with Azure Monitor (Part Two)

In this blog, we continue where we left off in part one, spending a bit more time expanding on the capabilities of Azure Monitor. Specifically, how powerful Log Analytics & KQL can be, saving us huge amounts of time and preventing alert fatigue. If you haven’t already decided whether or not to use SCOM or Azure monitor, head over to the Xello comparison article here.

For now, lets dive in!

Kusto Query Language (KQL) – Not your average query tool.

Easily the biggest change that Microsoft recommends when moving from SCOM to Azure Monitor is to change your alerting mindset. Often organisations get bogged down in resolving meaningless alerts – Azure Monitor enables administrators to query data on the fly, acting on what they know to be bad, rather than what is defined in a SCOM Management Pack. To provide these fast queries, Microsoft developed Kusto Query Language – a big data analytics cloud service optimised for interactive ad-hoc queries over structured, semi-structured, and unstructured data. Getting started is pretty simple and Microsoft have provided cheat-sheets for those of you familiar with SQL or Splunk queries.

What logs do I have?

By default, Azure Monitor will collect and store platform performance data for 30 days. This might be adequate for simple analysis of your virtual machines, but ongoing investigations and detailed monitoring will quickly fall over with this constraint. Enabling extra monitoring is quite simple. Navigate to your work space, select advanced settings, and then data.

From here, you can on board extra performance metrics, event logs and custom logs as required. I’ve already completed this task, electing to on board some Service, Authentication, System & Application events as well as guest level performance counters. While you get platform metrics for performance by default, on-boarding metrics from the guest can be an invaluable tool – Comparing the two can indicate where systems are failing & if you have an underlying platform issue!

Initially, I just want to see what servers I’ve on-boarded so here we run our first KQL Query:

Heartbeat | summarize count() by Computer

A really quick query and an even quicker response! I can instantly see I have two servers connected to my work space, with a count of heartbeats. If I found no heartbeats, something has gone wrong in my on-boarding process and we should investigate the monitoring agent health.

Show me something useful!

While a heartbeat is a good indicator of a machine being online, it doesn’t really show me any useful data. Perhaps I have a CPU performance issue to investigate. How do I query for that?

Perf | where Computer == “svdcprod01.corp.contoso.com” and ObjectName == “Processor” and TimeGenerated > ago(12h) | summarize avg(CounterValue) by bin(TimeGenerated, 1minutes) | render timechart

Looks like a bit, but in reality this query is quite simple. First, I select my Performance data. Next I filter this down. I want data from my domain controller, specifically CPU performance events from the last 12 hours. Once I have my events, I request a 1 minutes summary of the CPU value and push that into a nice time chart! The result?

Using this graph, you can pretty quickly identify two periods when my CPU has spiked beyond a “normal level”. On the left, I spike twice above 40%. On the right, I have a huge spoke to over 90%. Here is where Microsoft’s new monitoring advice really comes into effect – Monitor what you know, when you need it. As this is a lab domain controller, I know it turns on at 8 am every morning. Note there is no data in the graph prior to this time? I also know that I’ve installed AD Connect & the Okta agent – The CPU increases twice an hour as each data sync occurs. With this context, I can quickly pick that the 90% CPU spike is of concern. I haven’t setup an alert for performance yet, and I don’t have to. I can investigate when and if I have an issue & trace this back with data! My next question is – What started this problem?

If you inspect the usage on the graph, you can quickly ascertain that the major spike started around 11:15 – As the historical data indicates this is something new, it’s not a bad assumption that this is something new happening on the server. Because I have configured auditing on my server and elected to ingest these logs, I can run the following query:

SecurityEvent | where EventID == “4688” and TimeGenerated between(datetime(“2019-07-14 1:15:00”) .. datetime(“2019-07-14 1:25:00”))

This quickly returns me out a manageable 75 records. Should I wish, I could probably manually look through this and find my problem. But where is the fun in that? A quick scan reveals that our friend xelloadmin appears to be logged into the server during the specified time frame. Updated Query?

SecurityEvent | where EventID == “4688” and Account contains “xelloadmin” and TimeGenerated between(datetime(“2019-07-14 1:15:00”) .. datetime(“2019-07-14 1:25:00”))

By following a “filter again” approach you can quickly bring large 10,000 row data sets to a manageable number. This is also great for security response, as ingesting a the correct events will allow you to reconstruct exactly what has happened on a server without even logging in!
Thanks to my intelligent filtering, I’m now able to zero in on what appears to be a root cause. It appears that xelloadmin launched two cmd.exe processes less than a second apart, exactly prior to the CPU spike. Time to log in and check!

Sure enough, these look like the culprits! Terminating both process has resulted in the following graph!

Let’s create alerts and dashboards!

I’m sure you’re thinking at this point, that everything I’ve detailed out is after the fact – More importantly, I had to actively look for this data. You’re not wrong to be concerned about this. Again, this is the big change in mindset that Microsoft is pushing with Azure Monitor – Less alerting is better. Your applications are fault tolerant, loosely coupled and scale to meet demand already right?

If you need an alert, make sure it matters first. Thankfully, configuration is extremely simple should you require one!
First, work out your alert criteria- What defines that something has gone wrong? In my case, I would like to know when the CPU has spiked to over a threshold. We can then have a look in the top right of our query window- You should notice a “new alert rule” icon. Clicking this will give you a screen like the following:

The condition is where the magic happens – Microsoft has been gracious enough to provide some pre-canned conditions, and you can write your own KQL should you desire. For the purpose of this blog, we’re going to use a Microsoft rule.

As you can see, this rule is configured to trigger when CPU hits 50% – Our earlier spike thanks to the careless admin would definitely be picked up by this! Once I’m happy with my alert rule, I can configure my actions – Here is where you can integrate to existing tools like ServiceNow, JIRA or send SMS/Email alerts. For my purposes, I’m going to setup email alerts.
Finally, I configure some details about my alert and click save!

Next time my CPU spikes, I will get an email from Microsoft to my specified address and I can begin investigating in almost realtime!

The final, best and easiest way for administrators to get quick insights into their infrastructure is by building a dashboard. This process is extremely simple – Work out your metrics, write your queries and pin the results.

You will be prompted to select your desired dashboard – If you haven’t already created one, you can deploy a new one within your desired resource group! With a properly configured workspace and the right queries, you could easily build a dashboard like the one shown below. For those of you who have Azure Policy in place, please note that custom dashboards deploy to the Central US region by default, and you will need to allow an exception to your policy to create them.

Final Thoughts

If you’ve stuck with me for this entire blog post, thank you! Hopefully by now you’re well aware of the benefits of Azure monitor over System Center Operations Manager. If you missed our other blogs, head on over to Part One or our earlier comparison article! As Always, please feel free to reach out should you have any questions, and stay tuned for my next blog post where I look at replacing System Center Orchestrator with cloud native services!
